4 Pin Superseal 1.5 TE Connectivity Connectors With Terminals 282106-1 282088-1

Name: 4 Pin Superseal 15 TE Connectivity Connectors With Terminals 2821061 2820881
Brand: YBADDVANCE
Price: 1 USD

Wholesale 4 Pin Superseal 1.5 TE Connectivity Connectors With Terminals 282106-1 282088-1 from china suppliers

Brand Name : YBADDVANCE

Model Number : 282106-1 282088-1

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : 282106-1 282088-1

Way : 4 way

Color : Black

Gender : Female

WARRANTY : 1 year

Type : Sealed Connector

Martial : PBT/PA66

HS code : 8536909000

Feature : Waterproof

PLACE OF ORIGIN : Shaanxi,China

Contact Now

282106-1 282088-1 4 Pin Superseal 1.5 TE Connectivity Connector With Terminals

Description

4 Pin Superseal 1.5 TE Connectivity Connector With Terminals

Male :

Width : 31.8 mm

Length : 42 mm

Height : 13.8 mm

Female :

Height : 9.3 mm

Width 29.1 mm

Length : 32.2 mm
Wire Gauge (Max):22 AWG
Wire Gauge (Min):14 AWG

Specification

Item name	282106-1 282088-1 4 Pin Superseal 1.5 TE Connectivity Connector With Terminals
P/N	282106-1 282088-1
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	4 pin Sealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	4 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

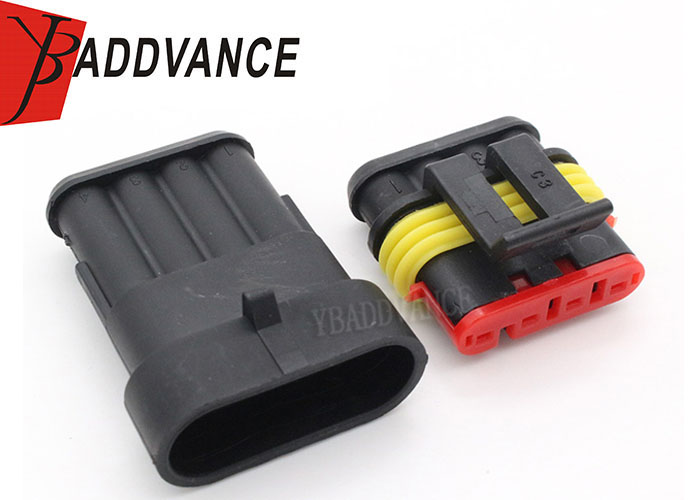

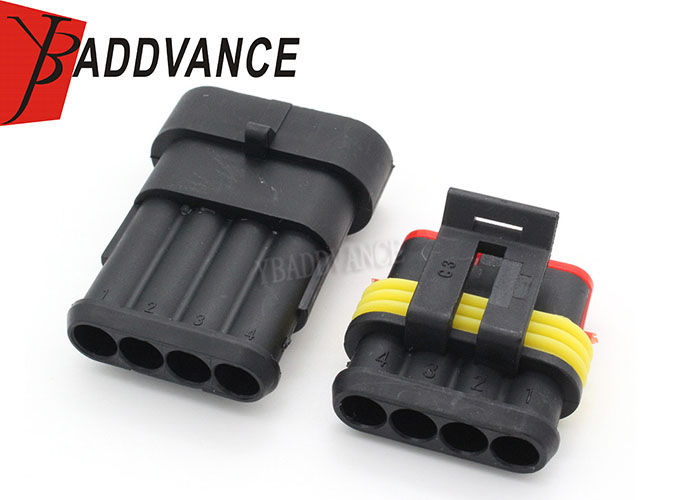

Product Picture Details

4 Pin Superseal 1.5 TE Connectivity Connectors With Terminals 282106-1 282088-1
