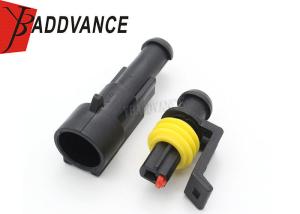

Black 1 Pin TE Connectivity Connectors / AMP Superseal Connector 1.5 Series

Name: Black 1 Pin TE Connectivity Connectors AMP Superseal Connector 15 Series
Brand: YBADDVANCE
Price: 1 USD

Wholesale Black 1 Pin TE Connectivity Connectors / AMP Superseal Connector 1.5 Series from china suppliers

Brand Name : YBADDVANCE

Model Number : 282103-1 282079-2

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : 282103-1 282079-2

Way : 1 way

Color : Black

Gender : Female

WARRANTY : 1 year

Type : Sealed Connector

Martial : PBT/PA66

HS code : 8536909000

Feature : Waterproof

PLACE OF ORIGIN : Shaanxi,China

Contact Now

282103-1 282079-2 1 Pin TE Connectivity AMP Superseal 1.5 Series Connector

Description

1 Pin TE Connectivity AMP Superseal 1.5 Series Connector

Male :
Height : 13.8 mm
Width : 13.8 mm
Length : 42 mm
Female :
Width : 9.3 mm
Length : 29.8mm
Height: 9.3 mm

Connector series: Superseal 1.5

A typical applications for these types are to provide a receptacle for connectors when they ate mounted to a printed circuit board.

These types of fittings are an essential component that offer protection for the connection that it is housing.

Specification

Item name	282103-1 282079-2 1 Pin TE Connectivity AMP Superseal 1.5 Series Connector
P/N	282103-1 282079-2
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	1 pin Sealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	1 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

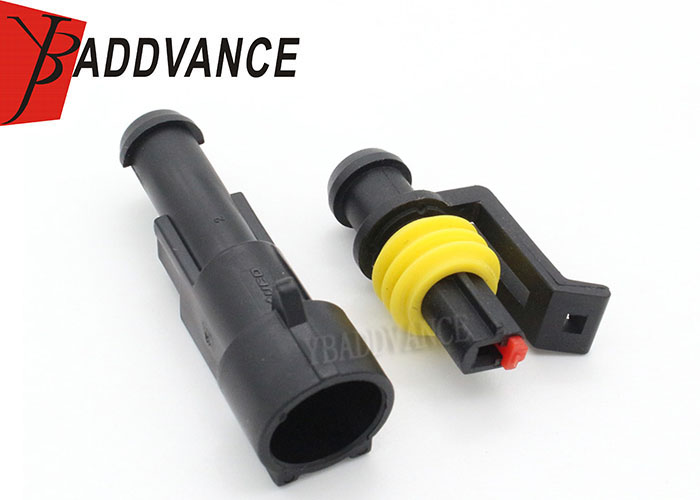

Product Picture Details

Black 1 Pin TE Connectivity Connectors / AMP Superseal Connector 1.5 Series
