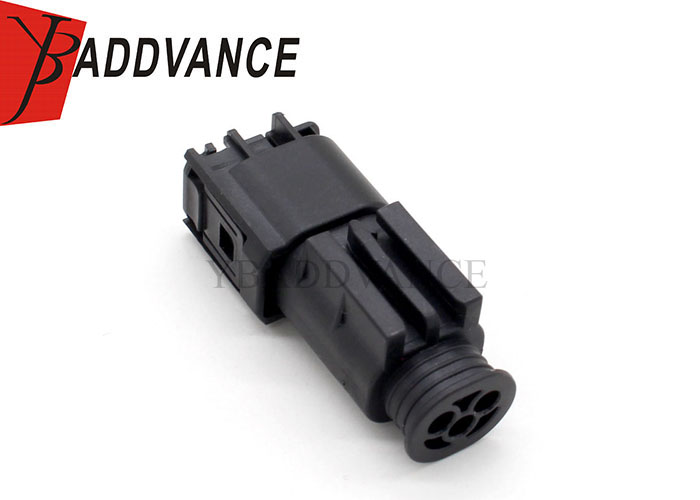

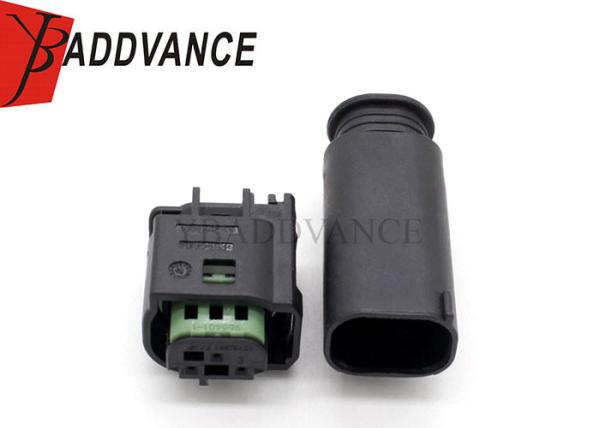

TE Connectivity 3 Way Male And Female AMP Connector For Truck 1-967167-3 1-967642-1
Product Description
TE Connectivity 3 Way Male And Female AMP Connector For Truck 1-967167-3 1-967642-1
1 x Female Connector Housing
3 x Female Terminal
1 x Male Connector Housing
3 x Male Terminal
6 x Rubber seal
Specification
| Product Name | TE Connectivity 3 Way Male And Female AMP Connector For Truck | | MOQ | 100 pieces | | Part Number | 1-967167-3 1-967642-1 | | Color | Black | | Dimensions: Female | Depth 24.2 mm Height 15.2908 mm Length 20 mm Mating Tab Width 635 µm Pitch 3.1 mm Row Spacing 5.8928 mm Width 24.2 mm | | Dimensions: Male | Width : 40.1 mm [ 1.57 in ]
Height : 16.75 mm [ .66 in ]
Length : 16.4 mm [ .645 in ]
Centerline (Pitch) : 2.54 mm [ .1 in ]
Mating Tab Width : .63 mm [ .025 in ] | | Contact Current Rating (Max) (A) | 13 | | Operating Temperature Range | -55 – 125 °C [ -67 – 257 °F ] | | Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL | | Connector System | Wire-to-Wire | | Design Ability | Please send us drawing or samples to design OEM&ODM | | | | | |
Other Connector
| Amp Tyco Connector | Description |
| 15476346 | GT 150 Series
20 pin female |
| 776164-4 | 35 pin female Blue |
| 776164-3 | 35 pin female Grey |
| 776164-2 | 35 pin female White |
| 776164-1 | 35 pin female Black |
| 173090-2 | 2 pin female |
| 1544978-1 | 2 pin female |
| BC7014-3.5-21 | 1 pin 3.5 Series EV1
Female Fuel Injector Connector |
| 7-1866487-1 | 34 Pin Female Sealed
ECU Connector Wire Loom A |
| 8E0972416 | 16 pin female |
BC7039 | 6 pin female |
| 770680-1 | 23 pin male |
| 776231-1 | 35 pin male Straight |
| 1-1718806-1 | 5 pin female |
FAQ
Q: I want to send you a sample to design our own tooling and you can't sell to other person? We also want to put our logo on the model?
A: Yes,we can make the tooling only for you but you should pay the higher tooling cost by yourself. If you can share the tooling with us
together,we will also pay a half of tooling fee.
Q: Can I have your catalogue? What is your skype or whatsapp?
A: Yes,we have our complete catalogue.Let me know your Email ID and I will send it by email. Skype:aadvanceparts WhatsApp:+86-
18991309129
Q: Do you have price list for all your products?
A: We do not have a price list of all of our products. there are too many items so it's hard for us to mark each item price on a list.I suggest you
write down your interested part numbers or sending us some picture to make quotation for you.
Q: Will you attend Automechanika Shanghai China or AAPEX show Las Vegas USA?
A: Yes,we plan to attend the show and will inform our Booth number to each client.
Q: Can you provide free samples ?
A: Yes,we can provide you free samples about 2 pieces but the shipping freight will be paid by yourself.
Q: What is your payment terms?
A: T/T(Wire transfer), Western Union and Paypal. You also can make payment by alibaba that will protect your business.
Q: What about your delivery time?
A: Most of items in stock except wire harnesses. So we can delivery our goods about 7-10 days after get your payment.
