Deutsch 0460 Crimp Terminal Contact 0460-202-16141 0.5mm² to 1.5mm² 20AWG to 16AWG

Name: Deutsch 0460 Crimp Terminal Contact 046020216141 05mm to 15mm 20AWG to 16AWG
Brand: YBADDVANCE
Price: 1 USD

Wholesale Deutsch 0460 Crimp Terminal Contact 0460-202-16141 0.5mm² to 1.5mm² 20AWG to 16AWG from china suppliers

Brand Name : YBADDVANCE

Model Number : 0460-202-16141

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 1000 UNITS

Price : Negotiation

Payment Terms : T/T, Western Union,paypal,credit card

Supply Ability : 500,000 units/month

Delivery Time : About 5-8 work days

Packaging Details : Inside packing：1000 units/lot put into bags. Outside packing：carton 5 layers.

Contact Plating : Nickel

For Use With : DT Series Connector

Part Number : 0460-202-16141

Max Wire Size : 1.5mm²

Termination Method : Crimp

Gender : Male

Maximum Wire Size AWG : 14AWG

Contact Material : Copper Alloy

Mechanical mounting : For Cable

Dedicated tool : HDT-48-00

Contact Now

Deutsch 0460 Crimp Terminal Contact 0460-202-16141 0.5mm² to 1.5mm² 20AWG to 16AWG

Product Description

Crimp Contacts Male terminal for DT and HD Series Sealed Connectors
From Deutsch, these high-quality circular crimp contacts are for use with DT and HD series sealed connectors. These connectors are environmentally sealed connectors that are designed for cable to cable applications within the automotive industry These solid contacts have a copper alloy body with nickel plating and a radial crimp type. The DT series crimp connectors are rugged quality but offer field-proven reliability.

Features & Benefits
Nickel plated copper crimp contact
Compatible with a wide range of Deutsch sealed connectors
Radial Crimp Type

Product Application Information
Characterised by their rugged thermoplastic housing, Deutsch connectors are heavy-duty and are commonly used in automotive

Application

These crimp pin contacts are compatible with the Deutsch DT, HDP20, HD10 and HD30 ranges of sealed connectors.
13 A current rating
Size 16 suitable for 16, 18 & 20 AWG wire sizes

Specification

Part Number	0460-202-16141
Contact Size	16
Contact Style	Solid
Wire cross section	0.5...1mm2
Gender	Pin/Male
Current Rating	13 Amps Continuous
Gold Plated Version	0460-215-1631
Crimp Tool	PT-48-00,HDT-48-00,HDT-1561
Mating Pin Diameter	1.5 mm
Application	DT Series Connectors
Contact Plating	Nickel Plated Contacts
Connector series	AEC, DRB, DRC, DT, DTV, HD10, HD30, HDP20, Jiffy Splice, STRIKE
Operating Temperature range	-55℃~125℃
Wire AWG	14
Contact	16
Contact Type	Pin
Contact Material	Copper Alloy
Contact Termination Type	Crimp
Design Ability	Please send us drawing or samples to design OEM&ODM
Market	Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight	1kgs/1000 pieces
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL

Product Tags:

deutsch waterproof connectors

deutsch dt series connectors

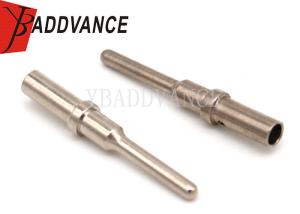

Deutsch 0460 Crimp Terminal Contact 0460-202-16141 0.5mm² to 1.5mm² 20AWG to 16AWG Images
