TE Connectivity Deutsch Automotive Connectors 4 Way Male DT04-4P-E005

Name: TE Connectivity Deutsch Automotive Connectors 4 Way Male DT044PE005
Brand: YBADDVANCE
Price: 1 USD

Wholesale TE Connectivity Deutsch Automotive Connectors 4 Way Male DT04-4P-E005 from china suppliers

Brand Name : YBADDVANCE

Model Number : DT04-4P-E005

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

Gender : Male

Martial : PBT/PA66

Color : Black

P/N : DT04-4P-E005

Way : 4 hole

Type : Deutsch Rectangular Connector

HS code : 8536909000

Feature : Waterproof

Contact Now

DT04-4P-E005 4 Way Male TE Connectivity Deutsch Rectangular Connector

Description

4 Way Male TE Connectivity Deutsch Rectangular Connector

The connectors offer field proven reliability and rugged quality.

Height : 47.45 mm

Width : 20.24 mm

Length : 20.83 mm

Mating with :DT06-4S-PT
Centerline (Pitch) : 4.45mm

Wire Gauge Range: 20 AWG to 14 AWG
Required Wedgelock: W4P

Modification: End Cap

Flange/In-line/PCB Mount: In-line

Amperage Rating: 13

4 circuit receptacle housing with protective end cap.

Specification

Item name	DT04-4P-E005 4 Way Male TE Connectivity Deutsch Rectangular Connector
P/N	DT04-2P-E005
Wire Size	14-20AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	4 pin waterproof Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	4 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

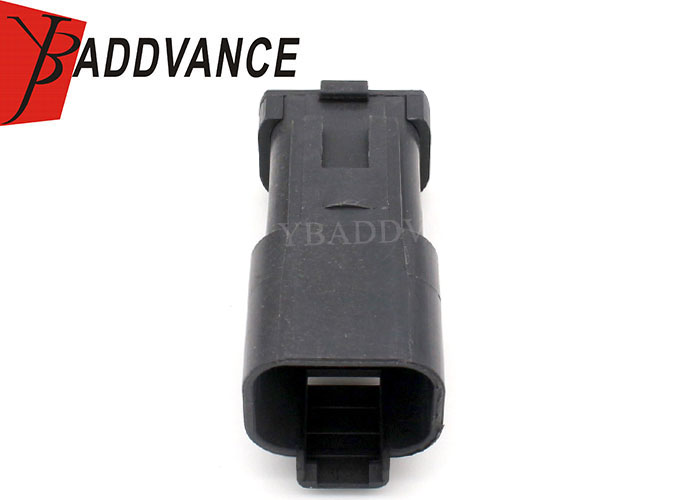

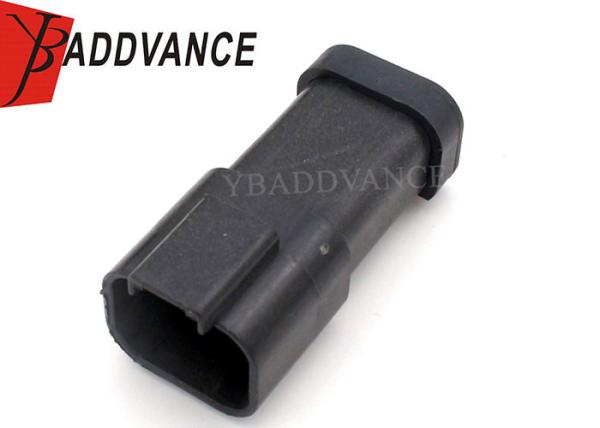

Product Picture Details

TE Connectivity Deutsch Automotive Connectors 4 Way Male DT04-4P-E005
