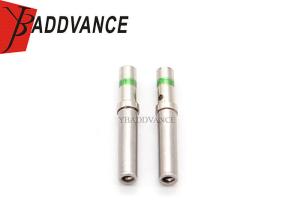

Deutsch 0462 Crimp Terminal Socket Female Solid Contact 0462-209-16141 0462-201-16141

Name: Deutsch 0462 Crimp Terminal Socket Female Solid Contact 046220916141 046220116141
Brand: YBADDVANCE
Price: 1 USD

Wholesale Deutsch 0462 Crimp Terminal Socket Female Solid Contact 0462-209-16141 0462-201-16141 from china suppliers

Brand Name : YBADDVANCE

Model Number : 0462-209-16141 0462-201-16141

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 1000 UNITS

Price : Negotiation

Payment Terms : T/T, Western Union,paypal,credit card

Supply Ability : 500,000 units/month

Delivery Time : About 5-8 work days

Packaging Details : Inside packing：1000 units/lot put into bags. Outside packing：carton 5 layers.

Contact Style : Solid

For Use With : DT,HD30,HDP20,DRC,HD10,DRB,DTV.AEC,STRIKE,Jiffy Splice

Contact Gender : Socket/Female

Contact Material : Copper Alloy

Termination Method : Crimp

Crimp Tool : DTT-16-00,1028 CT

Maximum Wire Size AWG : 14AWG

Contact Plating : Nickel Plated Contacts

Current Rating : 13 Amps Continuous

Operating Temperature : -55°C~125°C

Contact Now

Deutsch 0462 Crimp Terminal Socket Female Solid Contact 0462-209-16141 0462-201-16141

Product Description

Crimp Contacts for DT and HD Series Sealed Connectors
From Deutsch, these high-quality circular crimp contacts are for use with DT and HD series sealed connectors. These connectors are environmentally sealed connectors that are designed for cable to cable applications within the automotive industry These solid contacts have a copper alloy body with nickel plating and a radial crimp type.

The 0462-209-16141 from Deutsch is a solid socket contact with size 16, 13amp continuous current capacity and accommodates wire size of 14AWG.

Suitable for use with HD30/ HDP20/DRC/HD10/DT/DRB/DTV/AEC/STRIKE/Jiffy Splice series
Nickel plating
Contact material is copper alloy
Applications
Industrial

Specification

Application	DT and HD Sealed Connector Housings
Series	0462
Contact Style	Solid
Contact Plating	Nickel
Gender	Pin/Male+Socket/Female
Current Rating	13 Amps Continuous
Wire Size (mm²)	.75 – 2mm²
Crimp Tool	PT-48-00,HDT-48-00,HDT-1561
Mating Pin Diameter	1.5 mm
Application	DT Series Connectors
Contact Plating	Nickel Plated Contacts
Product Code	0462-209-16141 0462-201-16141
Operating Temperature range	-55℃~125℃
Wire AWG	14
Contact	16
Maximum Contact Resistance	60mV
Contact Material	Copper Alloy
Contact Termination Type	Crimp
Design Ability	Please send us drawing or samples to design OEM&ODM
Market	Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight	1kgs/1000 pieces
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL
