Grey Deutsch Automotive Connectors 6 Way Female TE Connectivity DT06-6S

Name: Grey Deutsch Automotive Connectors 6 Way Female TE Connectivity DT066S
Brand: YBADDVANCE
Price: 1 USD

Wholesale Grey Deutsch Automotive Connectors 6 Way Female TE Connectivity DT06-6S from china suppliers

Brand Name : YBADDVANCE

Model Number : DT06-6S

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

Color : Grey

P/N : DT06-6S

Type : Deutsch connector

Gender : Female

Way : 6 hole

Feature : Waterproof

Martial : PBT/PA66

HS code : 8536909000

WARRANTY : 1 year

PLACE OF ORIGIN : Shaanxi,China

Contact Now

6 Way Female TE Connectivity Deutsch Engine Connector DT06-6S

Description

6 Way Female TE Connectivity Deutsch Engine Connector

Deutsch DT series connectors provide superior electrical properties and weather resistance in an attractive, economical and user friendly product

Centerline (Pitch) :4.5 mm

Height:30.94 mm

Width: 22.63 mm

Submersion:

Properly wired and mated connection will withstand immersion under 3 feet of water without loss of electricity or leakage.
Fluid Resistance: Fluid resistance to most fluids used in industrial applications.
Thermal Cycle: No cracking, chipping or leaking after 20 test cycles from operating temperature.

For the DT Seriese female connector , we have 2 types terminals , please check the above pictures

DT series connectors accept 16size pins and sockets with 13amp continuous current capacity and accommodate wire sizes 12AWG to 20AWG.

Specification

Item name	6 Way Female TE Connectivity Deutsch Engine Connector DT06-6S
P/N	DT06-6S
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	6 pin Deutsch Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	6 way
Color	Grey
Warranty	1 year
Application	Automoive Motorcycles

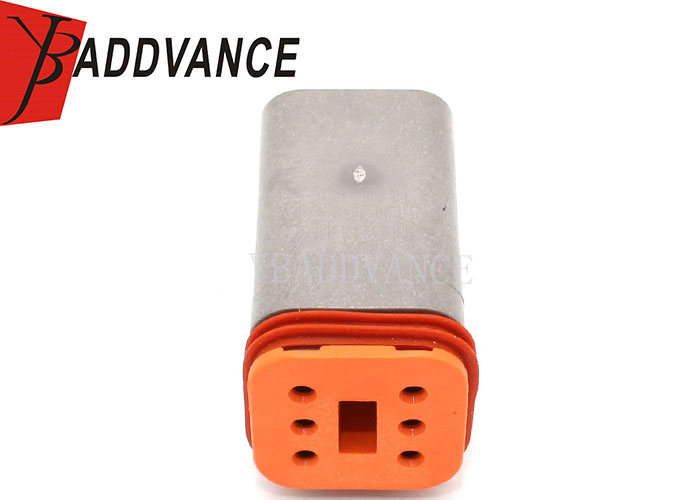

Product Picture Details

Grey Deutsch Automotive Connectors 6 Way Female TE Connectivity DT06-6S
